产品详情

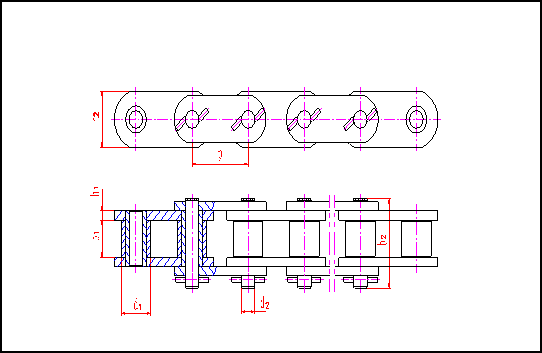

| 内链节内宽 Inner width of inner link b1(min) mm | 链板厚度 Plate thickness h1 mm | 链板高度 Plate height h2 mm | 销轴长度 Pin length b2 mm | 拉伸载荷 Tensile load min KN | 每米重量 Weight/m |
| 39.60 | 9.70 | 60.00 | 95.50 | 378.00 | 18.94 |
| 38.10 | 12.70 | 63.50 | 107.00 | 516.00 | 24.41 |
| 49.30 | 14.10 | 79.20 | 125.20 | 700.00 | 39.03 |
| 52.30 | 14.10 | 79.20 | 135.90 | 900.00 | 43.46 |
| 55.55 | 15.88 | 88.90 | 148.00 | 934.00 | 45.42 |
| 71.43 | 15.88 | 88.90 | 165.00 | 1179.00 | 50.31 |
| 76.20 | 20.00 | 128.00 | 186.00 | 2167.00 | 84.56 |
| 82.60 | 22.20 | 133.40 | 205.10 | 2068.00 | 95.00 |
